Description

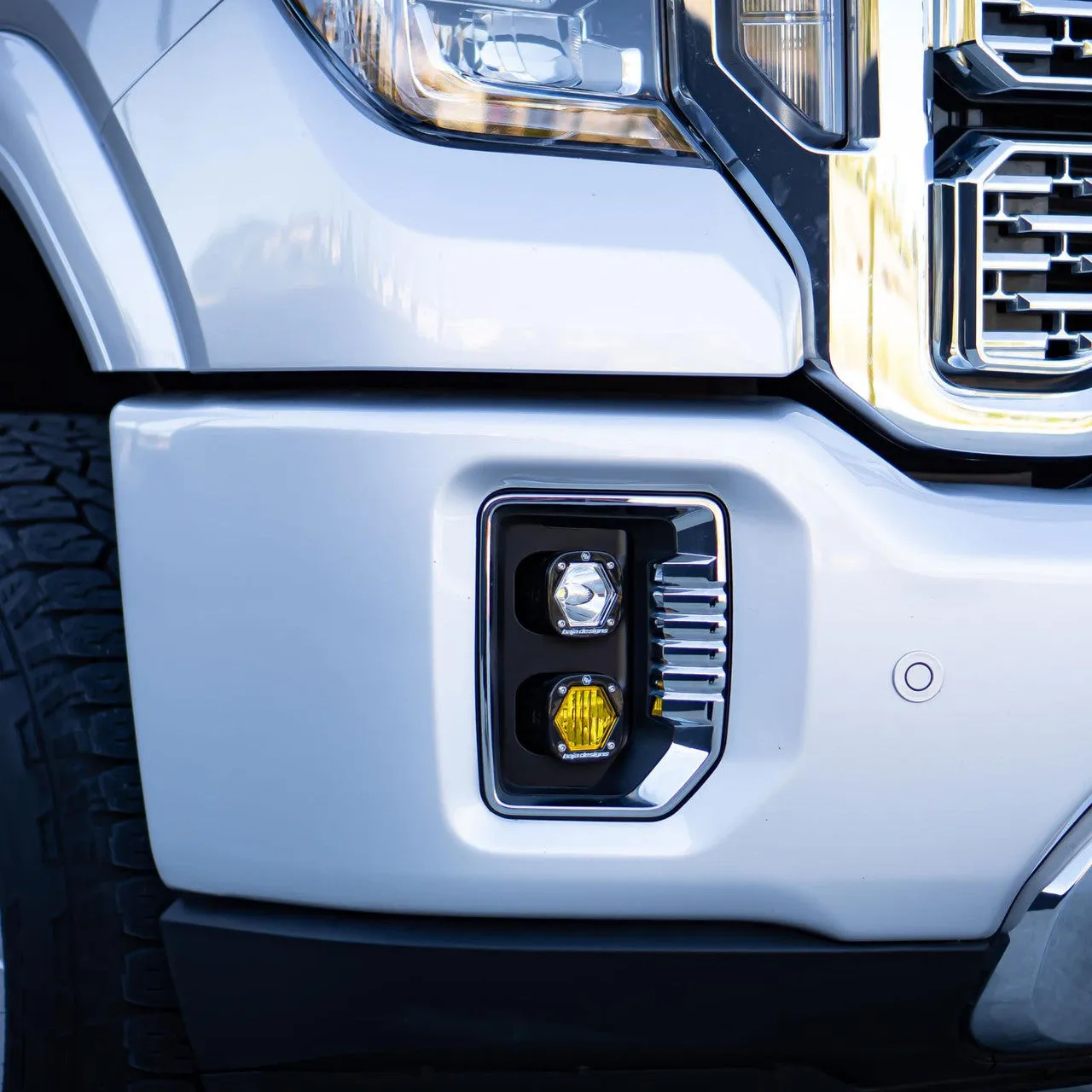

The Baja Designs dual S1 Fog Pocket kit for the GMC Sierra 2500/3500 is the perfect mix of high-quality on and off-road performance. Available in Clear or Amber, this kit utilizes the factory fog pocket location to pack two S1 lights on each side, offering 2,320 raw lumens per light at only 1.42A. This kit utilizes the factory fog switch to operate the lower pair S1 lights and the high beam function operates the upper pair of S1 lights. The included wiring harness is designed to be used in conjunction with factory light switches, and sPOD / Switch Pros units. If you're looking to add not only safety but lighting performance this is your kit! Backed by our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty for the ultimate in purchase protection. US Patent Number 11273751.

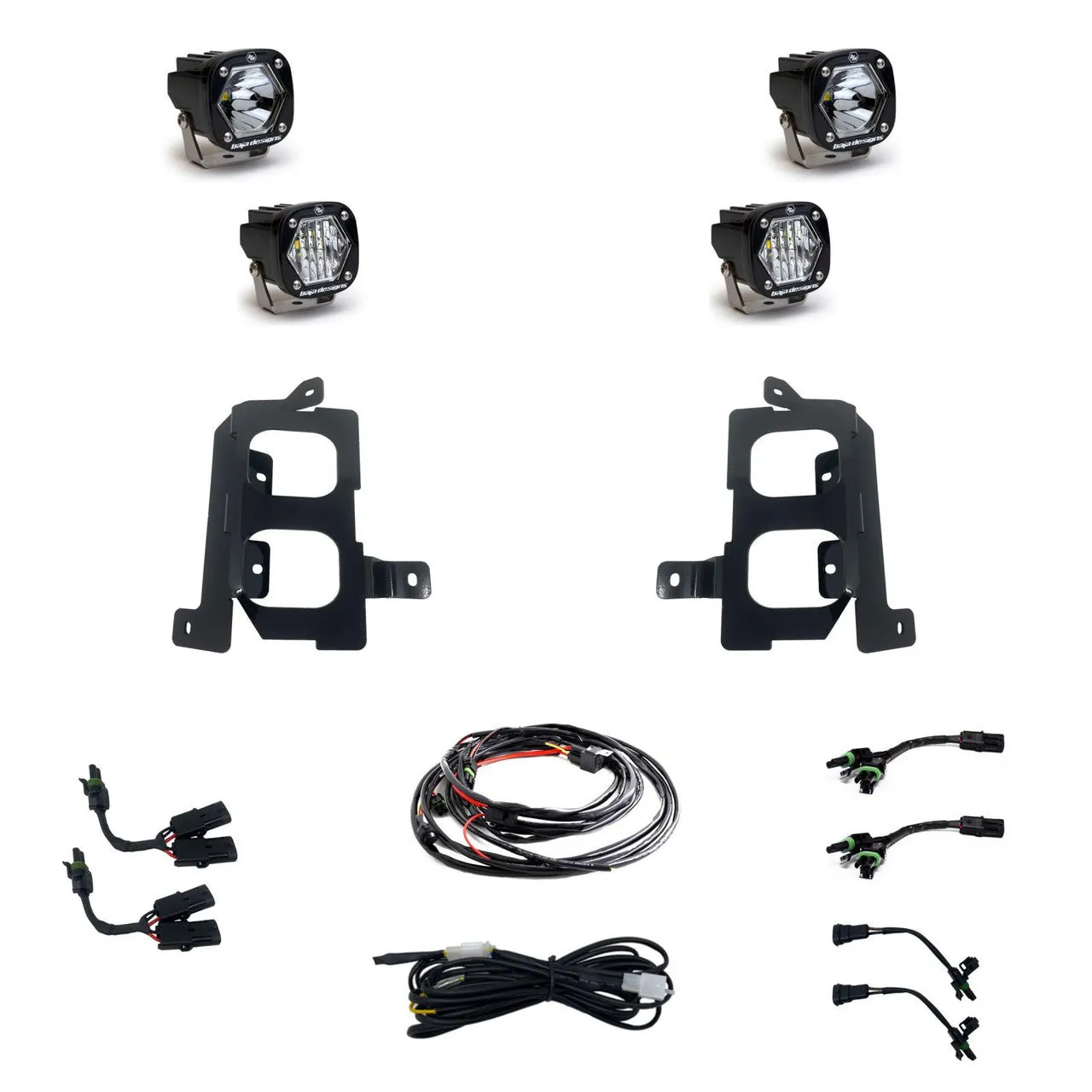

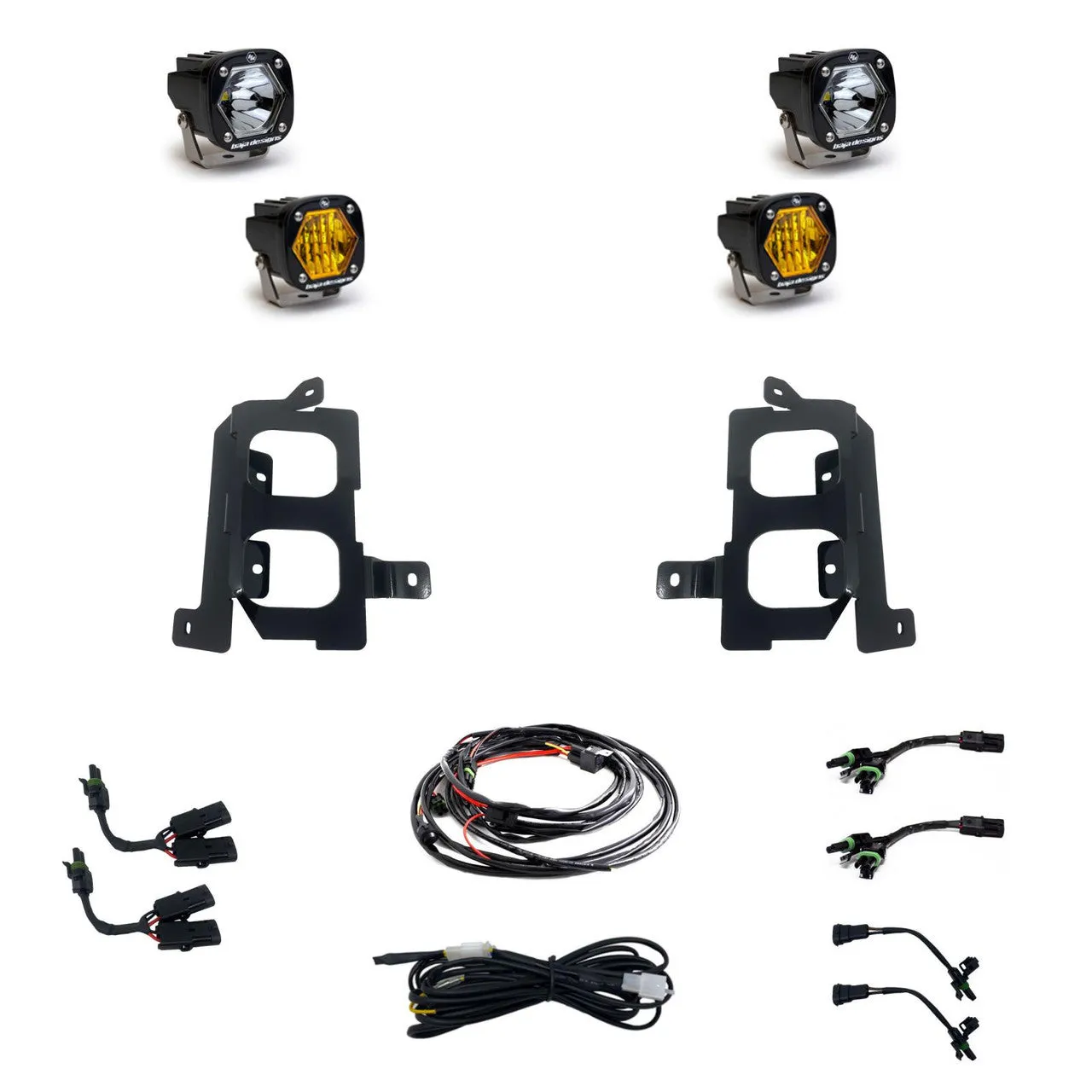

Kit Comes with:
- (2x) S1 Spot (Clear)
- (2X) S1 Wide Cornering (Clear or Amber)
- (2x) Mounting Brackets
- (1x) Wiring Harness 640117
- (1x) Trigger Switch Harness 640180
- (2x) Splitter Harness
- All necessary mounting hardware
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
FITS
Dimensions
| Depth (in.) | 2.100 |
| Height (in.) | 2.100 |
| Length (in.) | 2.100 |
| Weight (lbs.) | 0.400 |
Specifications
| Amperage Rating (A) | 1.420 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 2320 |
| Description | Spot; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 1 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S1 LED Light Pod |
| Voltage | 9-28 |
| Wattage (W) | 19.596 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
